R-EdgeX Series

Explore Rug-Rel R-EdgeX products for embedded computing, interface development, sensing, and field-ready platform integration.

Back to Embedded Solutions

R-EdgeX Products

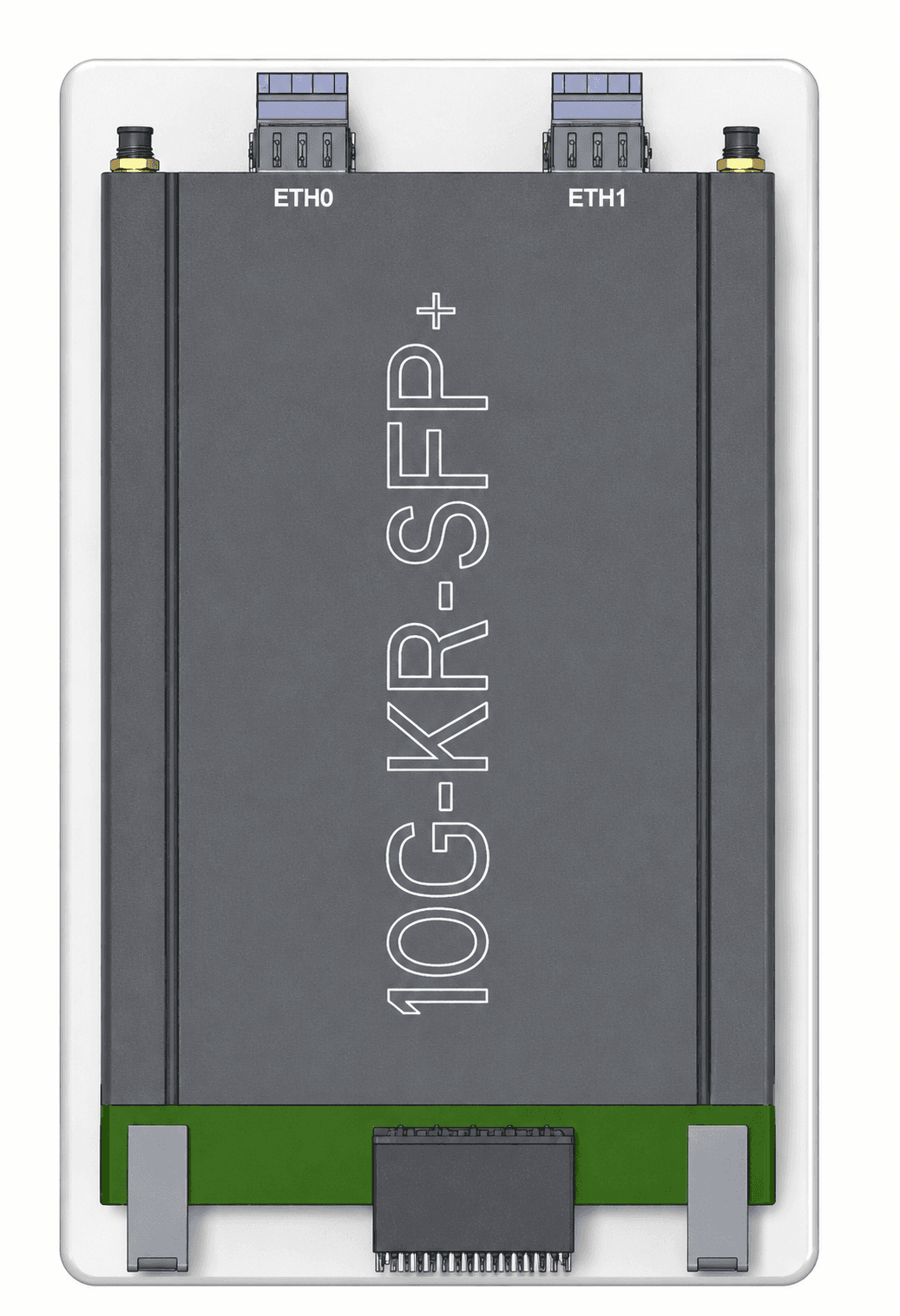

10GKR-SFP+ Adapter Card

An R-EdgeX adapter card intended for high-speed network interface bridging and embedded connectivity expansion.

Key Features

10GKR-SFP+ Adapter Card

Dual-channel 1G/10GBASE-KR to SFI Ethernet PHY card with VeriTime and Intellisec support.
Provides 2 rear 10GBASE-KR ports and 2 front-panel SFP+ interfaces in a rugged 3U Eurocard form factor.
Supports IEEE 1588v2 or 1731 timing, IEEE 802.1AE MACsec, and Ethernet rates from 1.25 Gbps to 10.3125 Gbps.
Includes SPI, MDIO, and two-wire management plus host-side and line-side loopbacks with BIST support.

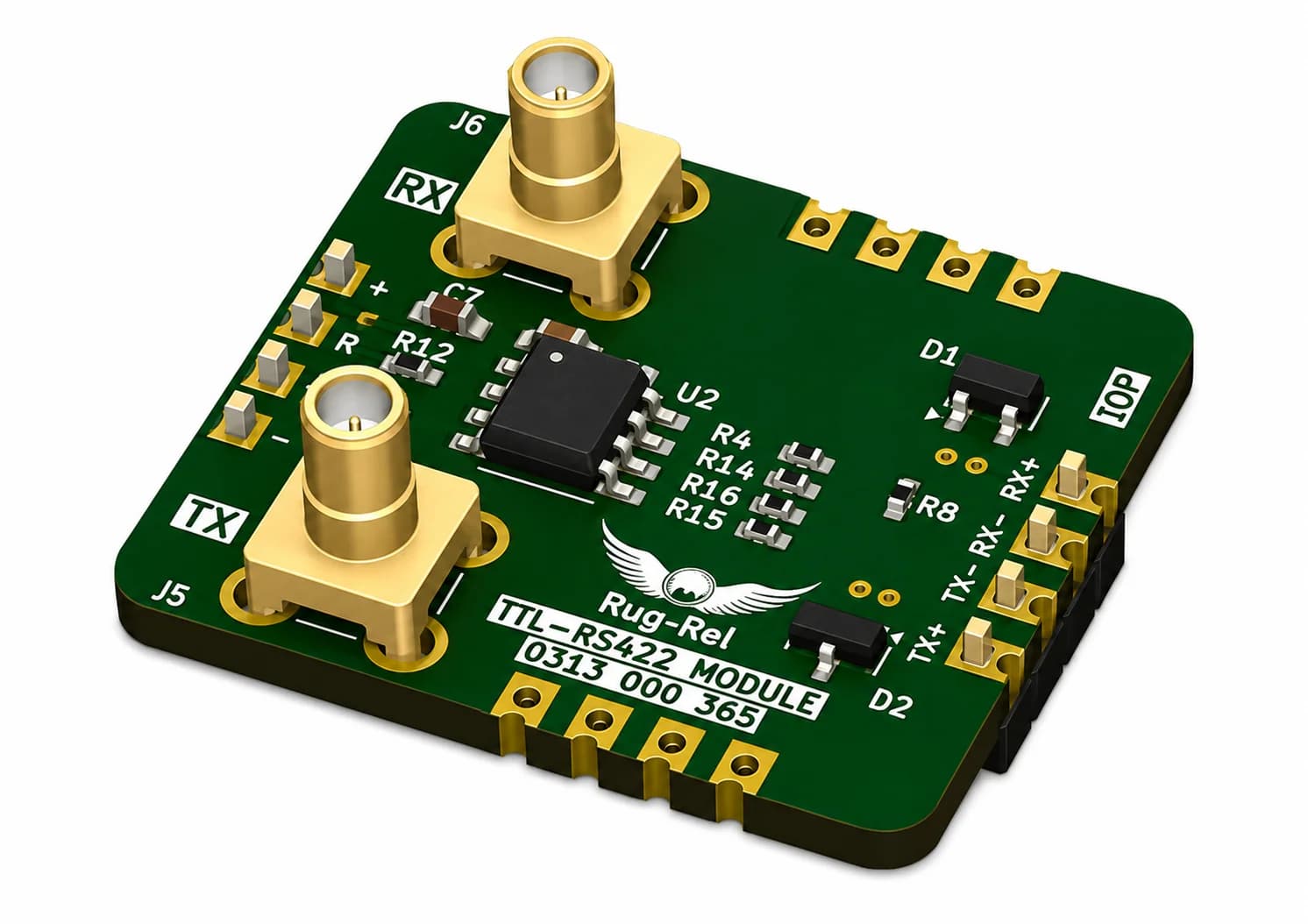

TTL RS422 Module

An R-EdgeX interface module designed for TTL to RS422 signal translation in embedded communication systems.

Key Features

TTL RS422 Module

Converts TTL signaling to RS422 with a single 5 V supply input.
Supports data rates up to 2.5 Mbps through SMB connector interfaces for TTL TX and RX signals.
Provides IEC 61000-based ESD, EFT, and lightning protection together with a fail-safe receiver input.
Uses only about 120 uA supply current when fully loaded and fits a 28 mm x 25 mm x 12 mm form factor.

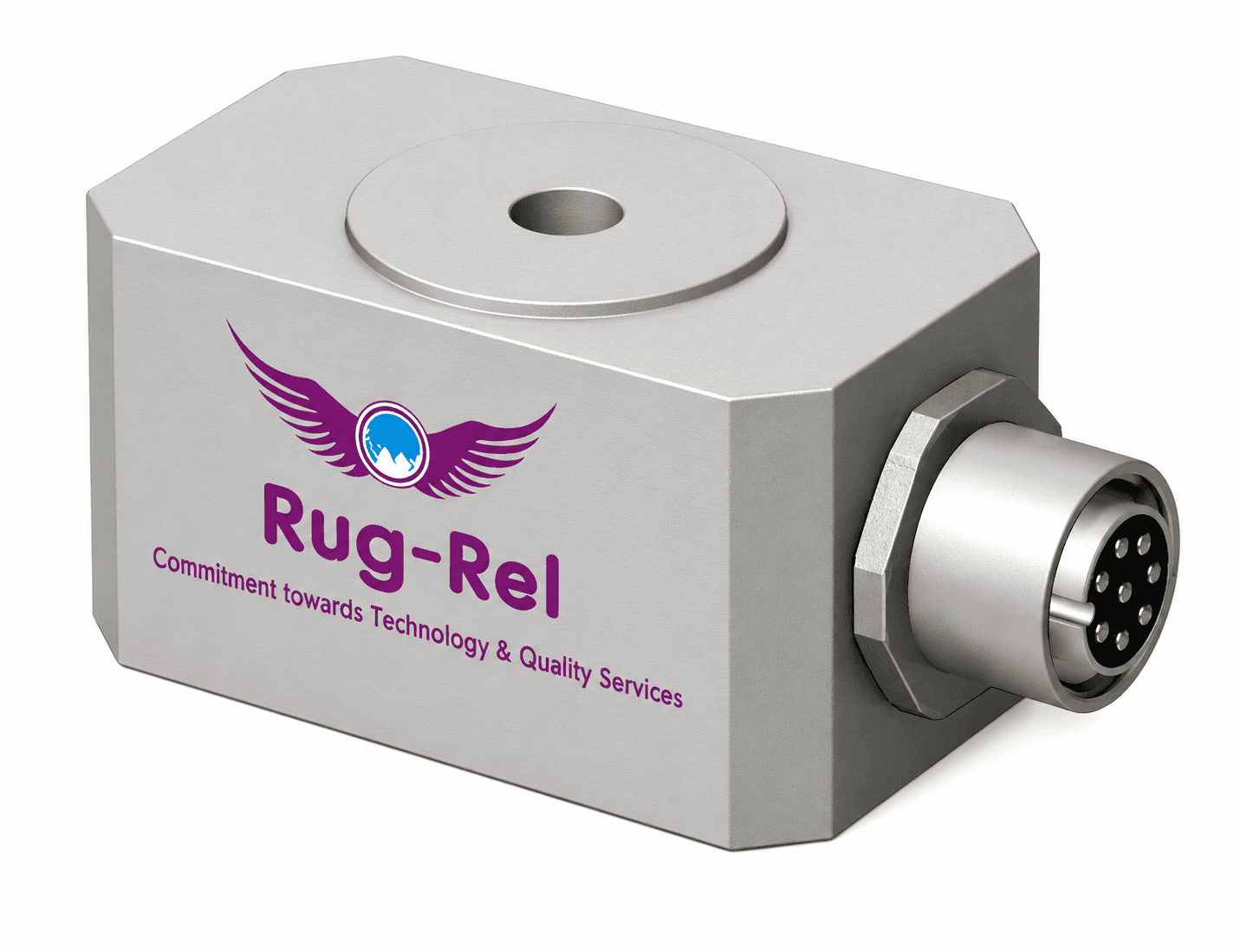

Rugged 3Axis MEMS Accelerometer

An R-EdgeX rugged accelerometer module intended for motion and vibration sensing in demanding embedded deployments.

Key Features

Rugged 3Axis MEMS Accelerometer

3-axis digital MEMS accelerometer with output data rates from 0.5 Hz up to 1 kHz.
Supports dynamically selectable full-scale ranges of +/-100 g, +/-200 g, and +/-400 g.
Packaged in a rugged IP67 enclosure with M8 mounting and 10,000 g high-shock survivability.
Provides RS232, RS485, or Ethernet digital output plus industrial M12 connector interfacing.

Zynq DVK

An R-EdgeX development kit built around a Zynq platform for embedded processing, evaluation, and application development.

Key Features

Zynq DVK

Built around Kintex UltraScale+ FPGA options with up to 1,842K logic cells and an LS1021A dual-core Arm Cortex-A7 CPU up to 1.2 GHz.
Provides 4 GB dual 64-bit DDR4 for PL or FPGA, 2 GB DDR4 ECC for the Arm CPU, plus NOR flash, MRAM, and SRAM.
Implements a 3U VPX architecture with data-plane, switch-plane, utility-plane, clock, and GPIO backplane connectivity.
Adds front-panel USB-C, Gigabit Ethernet, debug UART, M.2 PCIe expansion, and a conduction-cooled 12 V design.

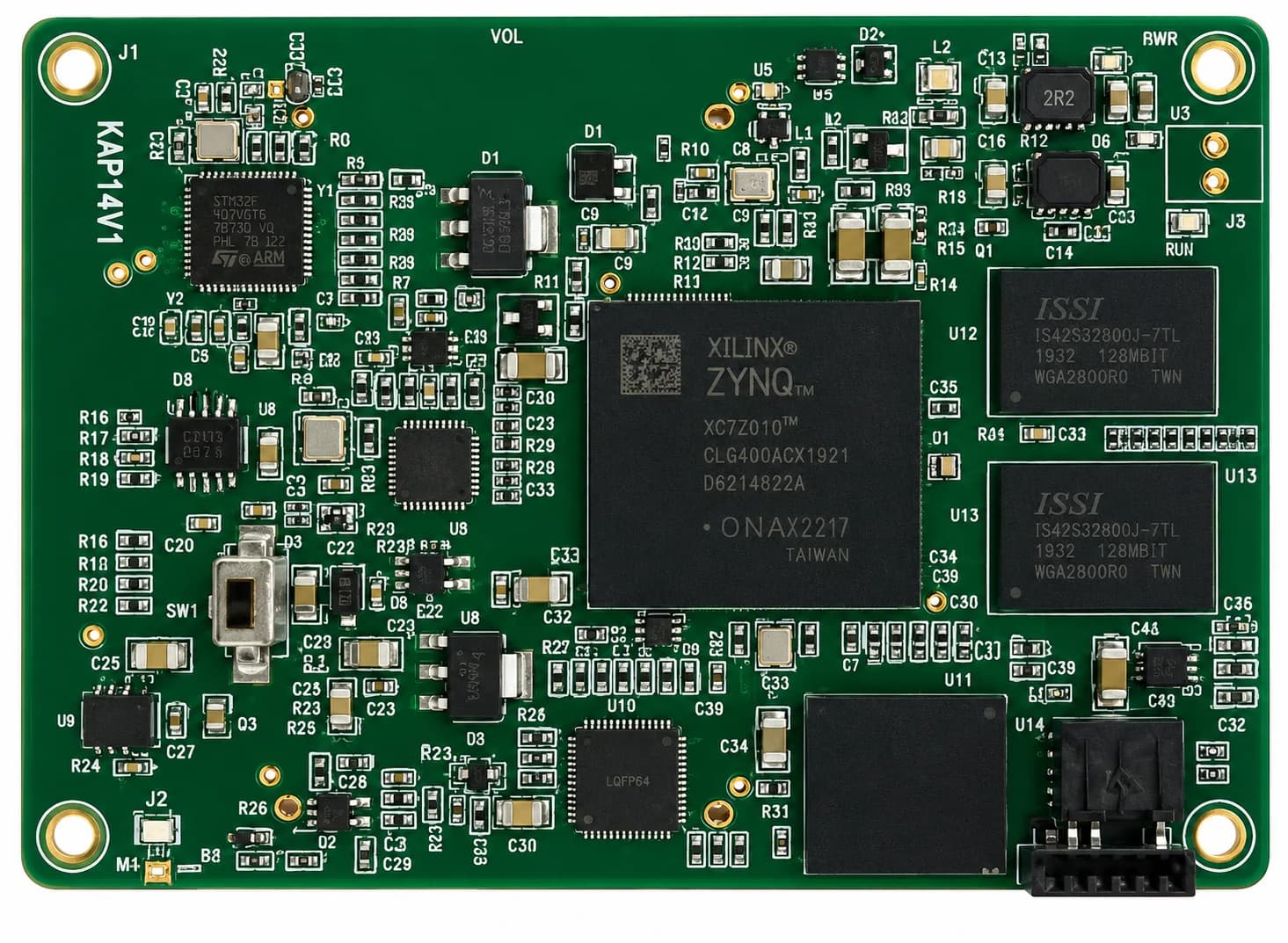

Karvi SBC

An R-EdgeX single board computer platform intended for compact embedded compute and control deployments.

Key Features

Karvi SBC

Single board computing platform in the R-EdgeX family for compact embedded processing and control deployments.
Positioned for board-level integration where compute density and compact packaging are both important.
Presented with two product views to show the board layout and physical build for system-integration review.
Structured as a dedicated SBC offering within the embedded-solutions catalog and backed by the supplied Karvi datasheet.

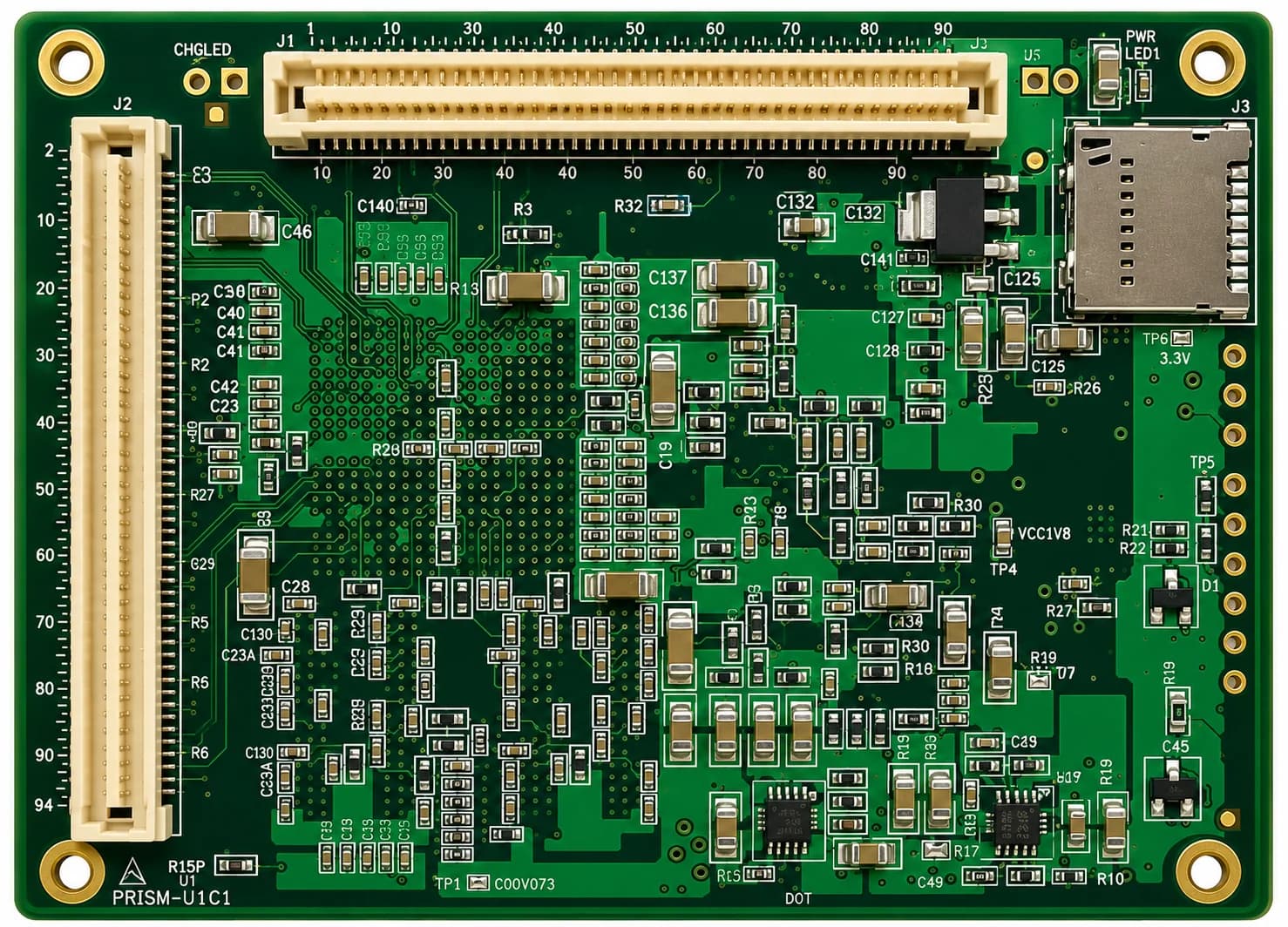

InAS

An R-EdgeX product entry for embedded application scenarios requiring the InAS platform and its supporting technical documentation.

Key Features

InAS

R-EdgeX platform entry intended for embedded application scenarios built around the InAS hardware offering.
Positioned for application-specific deployments where the supplied InAS platform and its supporting documentation are the primary reference.
Presented with two product views so users can inspect the hardware from more than one angle before opening the datasheet.
Included as a dedicated embedded-solutions item for teams evaluating the InAS platform inside Rug-Rel edge deployments.

Customization

Need a Custom R-EdgeX Configuration?

Rug-Rel can support R-EdgeX adaptations for embedded compute, interface connectivity, sensing, packaging, and deployment-specific integration requirements. Share your requirement and our team will help align the right platform.
