Backplanes

Explore Rug-Rel backplane platforms developed for rugged architecture planning, subsystem packaging, and deployment-ready integration.

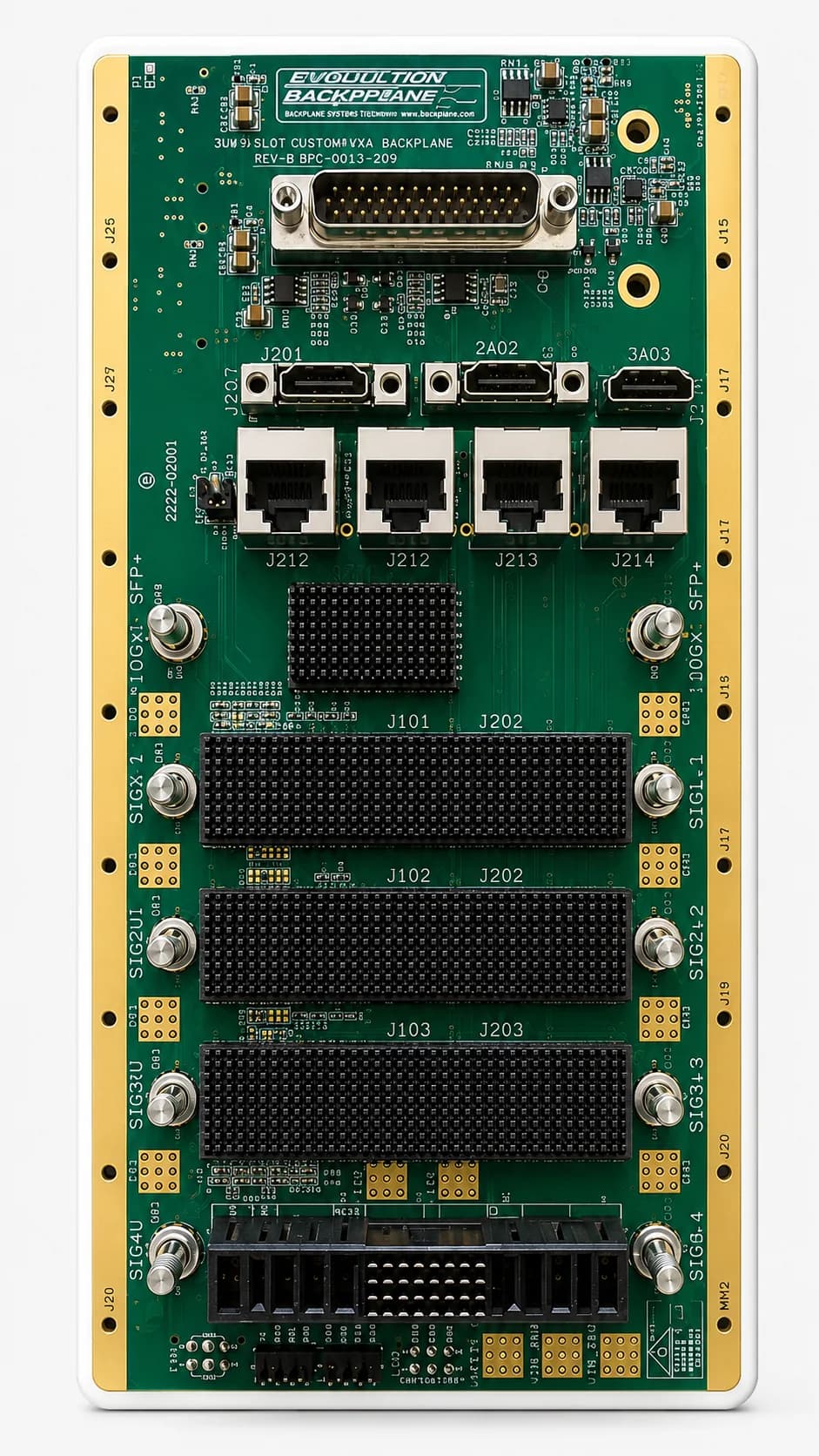

4 Slot 3U CUSTOM VPX BACKPLANE

A 4-slot 3U custom VPX backplane designed for rugged embedded platforms that need VITA-aligned architecture, custom I/O connectivity, and subsystem-ready power and interconnect planning.

Key Features

4 Slot 3U CUSTOM VPX BACKPLANE

Compliant to VITA 46.0 baseline application.
Supports VITA 65 including Ethernet 10G BASE-KR.
4 slot 3U VPX backplane with 1 inch slot pitch and VITA 42 standard PSU slot.
Includes custom connectors for 1G Ethernet, USB, RS232, RS422, and other discrete I/Os on the backplane.

5 Slot 3U Custom VPX Backplane

A custom 5-slot 3U VPX backplane for rugged embedded platforms that need application-specific slot planning, dependable connectivity, and an integration-ready architecture foundation.

Key Features

5 Slot 3U Custom VPX Backplane

Custom 5-slot 3U VPX backplane platform for embedded architecture programs.
Built for teams that need application-specific slot planning and interconnect definition.
Supports rugged subsystem integration where electrical, mechanical, and packaging constraints must align.
Fits programs that need a 3U VPX backbone aligned to specific payload cards, processors, and I/O requirements.

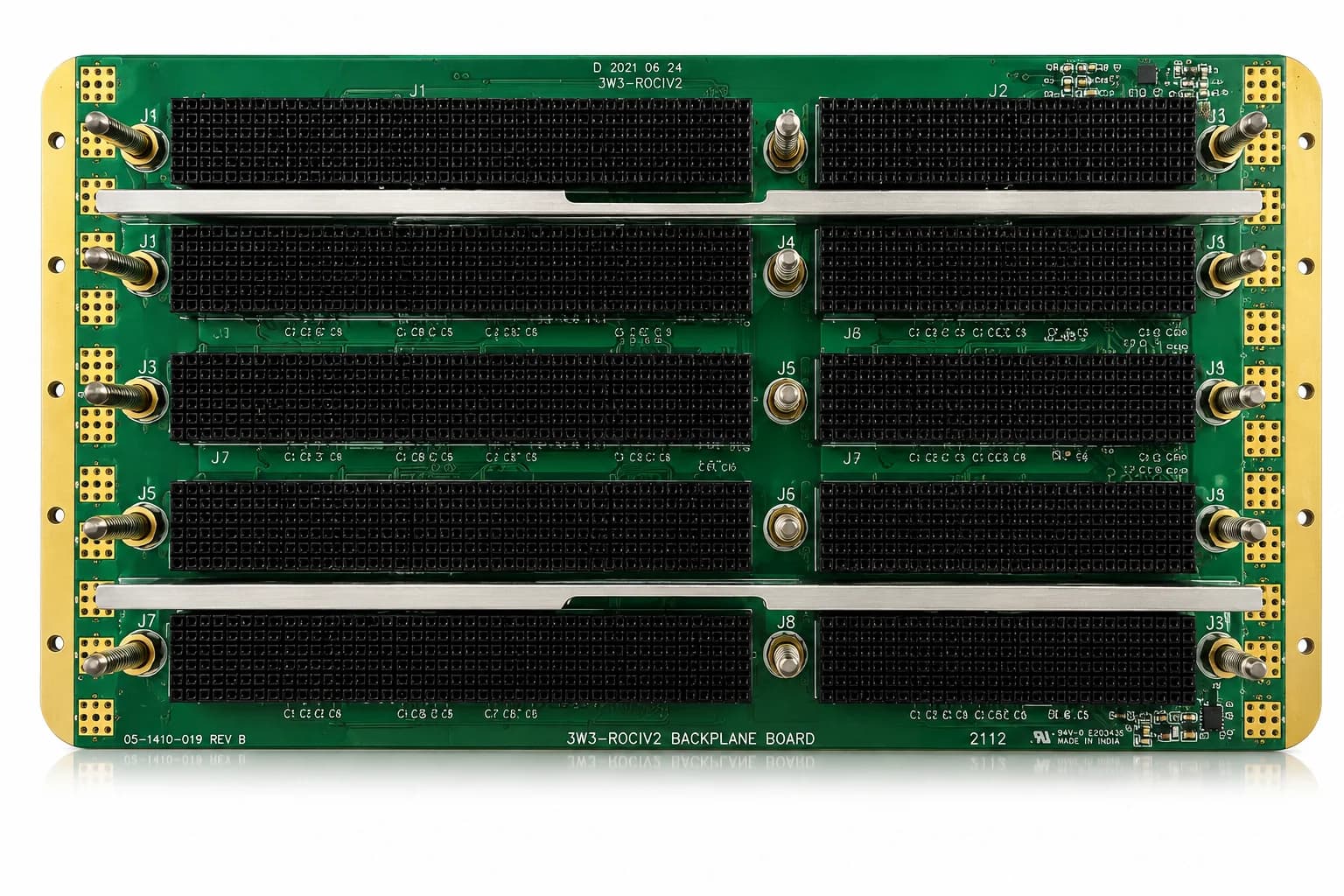

5 Slot 6U Custom VPX Backplane

A 5-slot 6U VPX backplane for larger embedded and defence-oriented platforms that need organized slot assignment, rugged packaging alignment, and dependable subsystem connectivity.

Key Features

5 Slot 6U Custom VPX Backplane

5-slot 6U VPX backplane created for larger embedded and defense-oriented architectures.
Supports organized slot assignment and system-level interconnect planning.
Designed for programs that need rugged packaging alignment and integration-ready backplane layouts.
Well suited to larger embedded and defence-oriented builds that cannot rely on a generic 6U backplane arrangement.

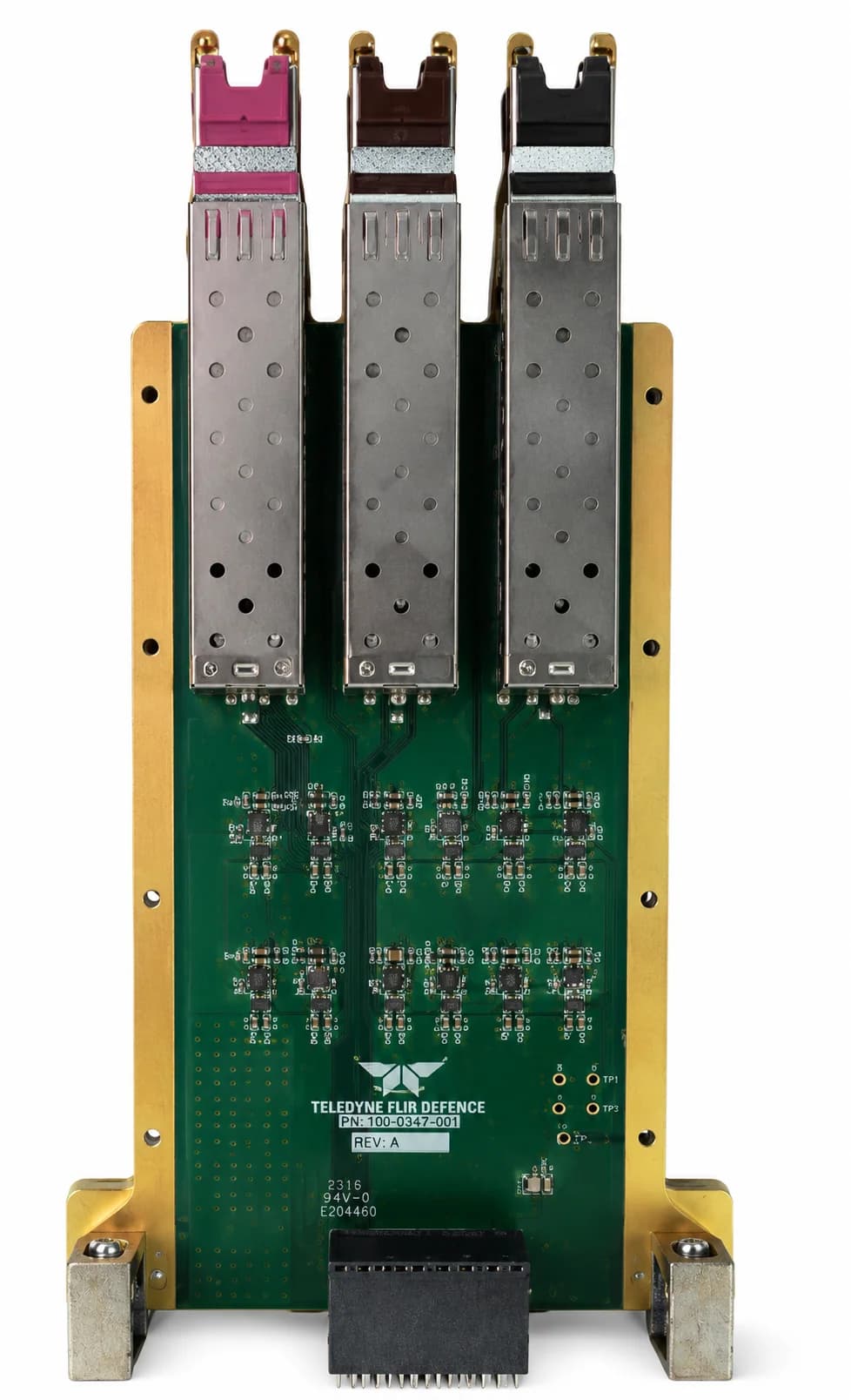

10G-KR SFP+ Adapter Card

A high-speed 10G-KR to SFP+ adapter card for VPX and rugged embedded systems that need reliable network expansion and pluggable connectivity support.

Key Features

10G-KR SFP+ Adapter Card

High-speed adapter card for VPX and embedded edge systems that need 10G network expansion.
Bridges 10G-KR to SFP+ for programs that require rugged optical or pluggable connectivity support.
Fits architectures where reliable high-bandwidth data movement is critical.
Supports integration planning for communication-heavy embedded platforms.

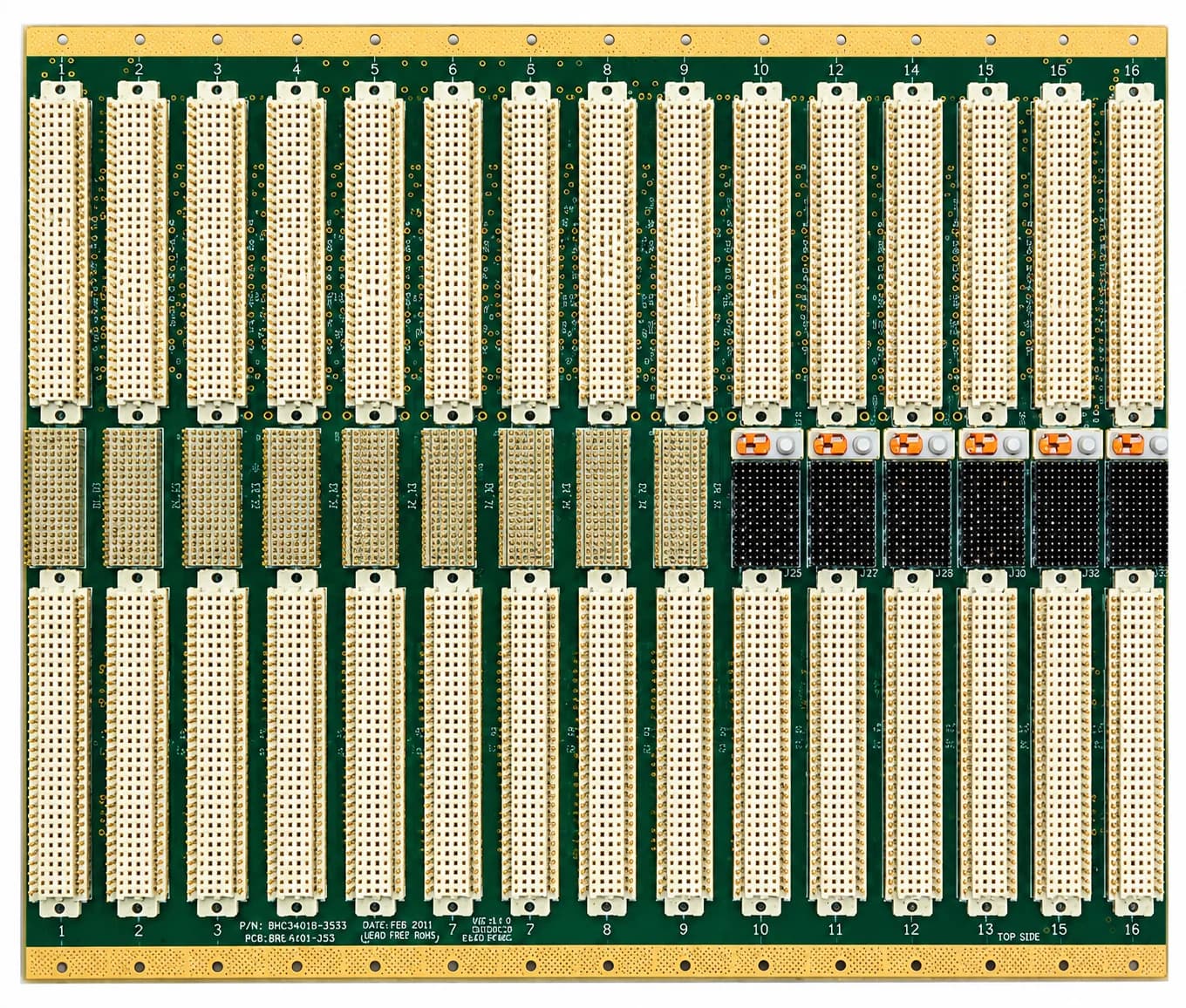

6U-7U VME64x Backplanes

A VME64x backplane range for 6U and 7U embedded systems, intended for multi-slot platform design, interconnect planning, and deployment-oriented subsystem builds.

Key Features

6U-7U VME64x Backplanes

Backplane offering focused on 6U and 7U VME64x architectures.
Supports multi-slot embedded platform design and backplane-level connectivity planning.
Useful for subsystem packaging where card arrangement and interconnect structure must be reviewed together.
Fits embedded programs that need VME64x-aligned expansion and integration infrastructure.

Customization

Need a Custom Backplane Build?

Rug-Rel supports backplane customization for slot planning, packaging architecture, integration constraints, and deployment-specific subsystem requirements.
